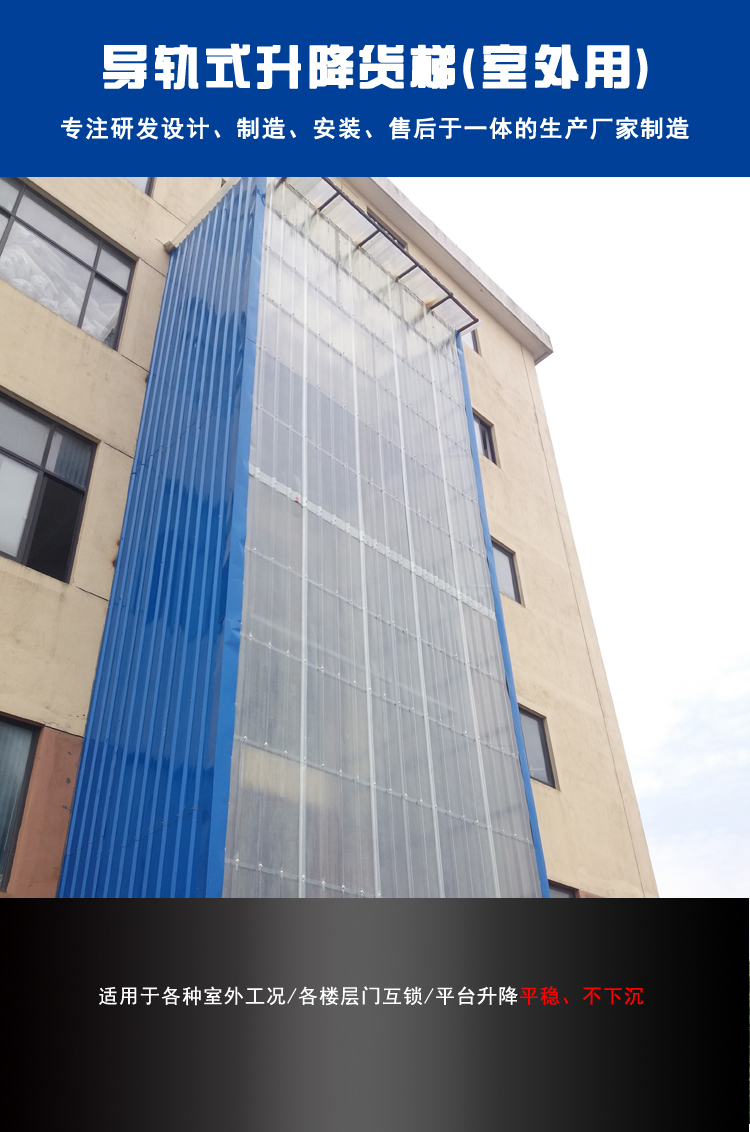

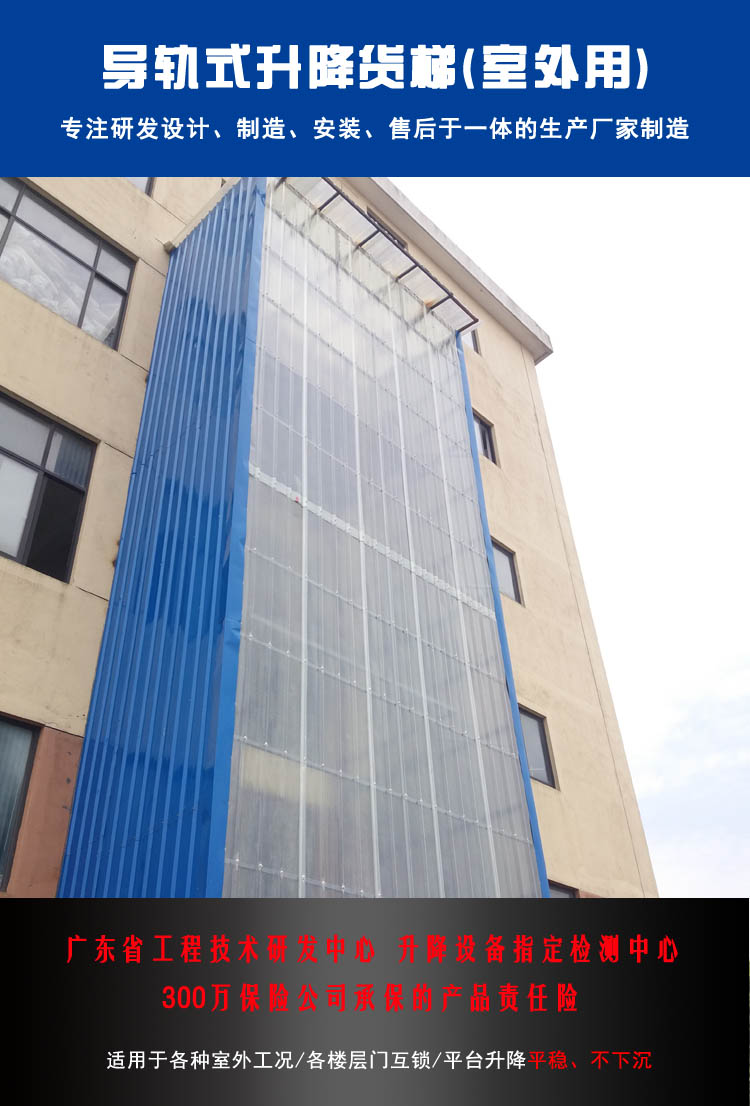

导轨式升降货梯（室外用）
产品参数
产品型号 |
额定载重(kg) |
升降行程(mm) |
台面尺寸(mm) |

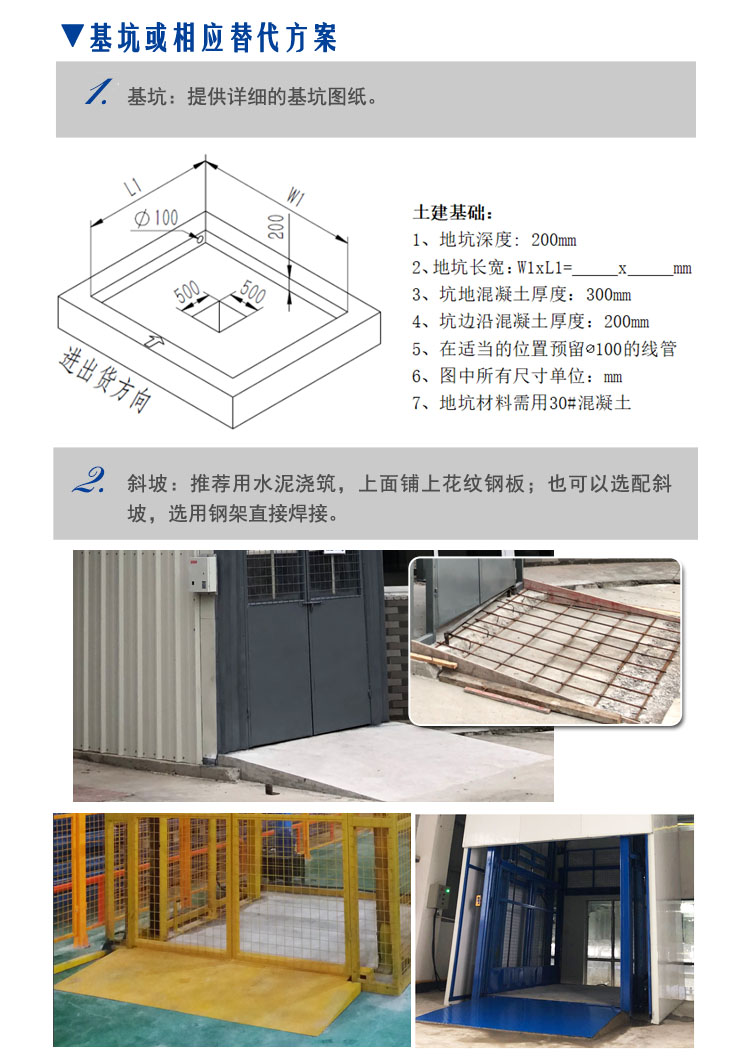

基坑尺寸(mm) |
外围尺寸（靠墙mm） |
电机功率(kw) |
SJT1-3 |
1000 |
3000 |
2000×2000 |
2500×2100 |
3000×2400 |
2.2 |
SJT2-3 |
2000 |
3000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT1-4 |
1000 |
4000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT2-4 |
2000 |
4000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT1-5 |
1000 |
5000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT2-5 |
2000 |
5000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT1-6 |
1000 |
6000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT2-6 |
2000 |
6000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT1-7 |
1000 |
7000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT2-7 |
2000 |
7000 |
2000×2000 |
2500×2100 |
3000×2400 |
3.7 |
SJT1-8 |
1000 |
8000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
SJT2-8 |
2000 |
8000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
SJT1-9 |
1000 |
9000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
SJT2-9 |
2000 |
9000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
SJT1-10 |
1000 |
10000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
SJT1-12 |
1000 |
12000 |
2000×2000 |
2500×2100 |
3000×2400 |
5.5 |
载重、升降行程、台面尺寸可跟进需求定制。定制热线：400-666-3228 |
||||||
